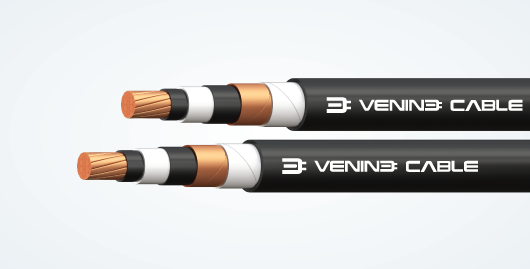

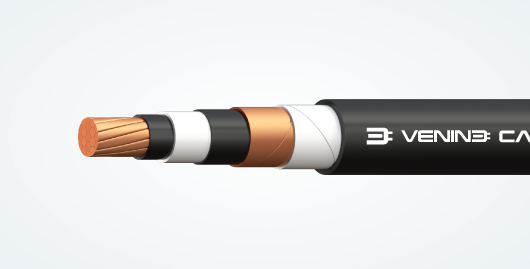

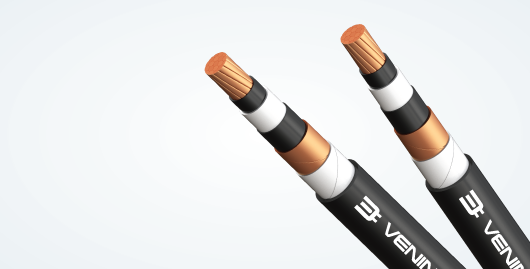

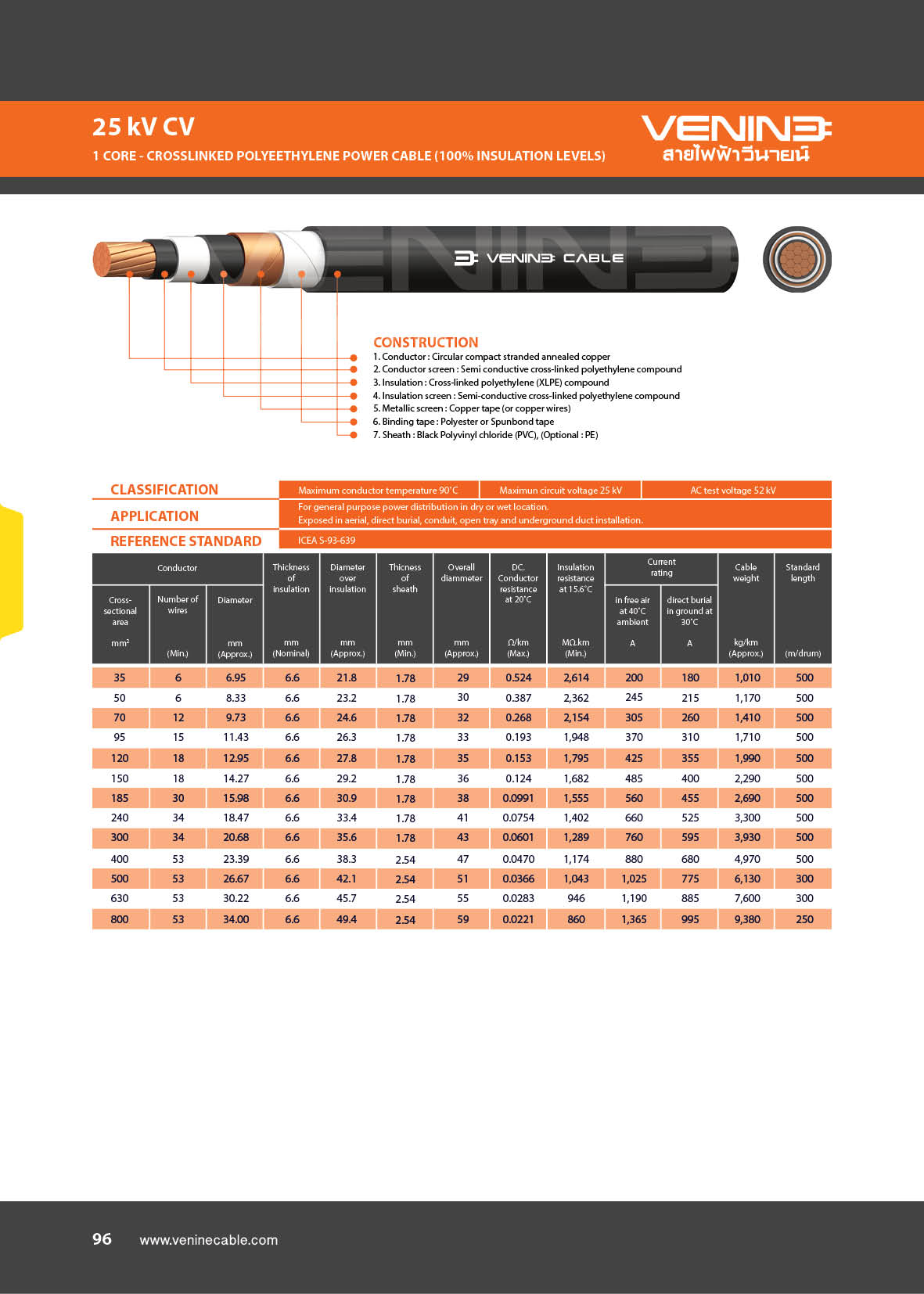

CONSTRUCTION

Conductor :  Circular compact stranded annealed copper
Conductor Screen :  Semi conductive cross-linked polyethylene compound
Insulation :  Cross-linked polyethylene (XLPE) compound
Insulation Screen :  Semi-conductive Cross-linked polyethylene compound
Metalic screen :  Copper tape (or copper wires)
Binding tape :  Polyester or Spunbond tape
Sheath :  Black polyvinyl Chloride (PVC), (Optional : PE)

Maximum conductor temperature : 90˚C
Maximum circuit voltage : 25 kV
AC test voltage : 52 kV

APPLICATION

For general purpose power distribution in dry or wet location.
Exposed in serial, direct burial, conduit, open tray and underground duct installation.

REFERENCE STANDARD

ICEA S-93-639
