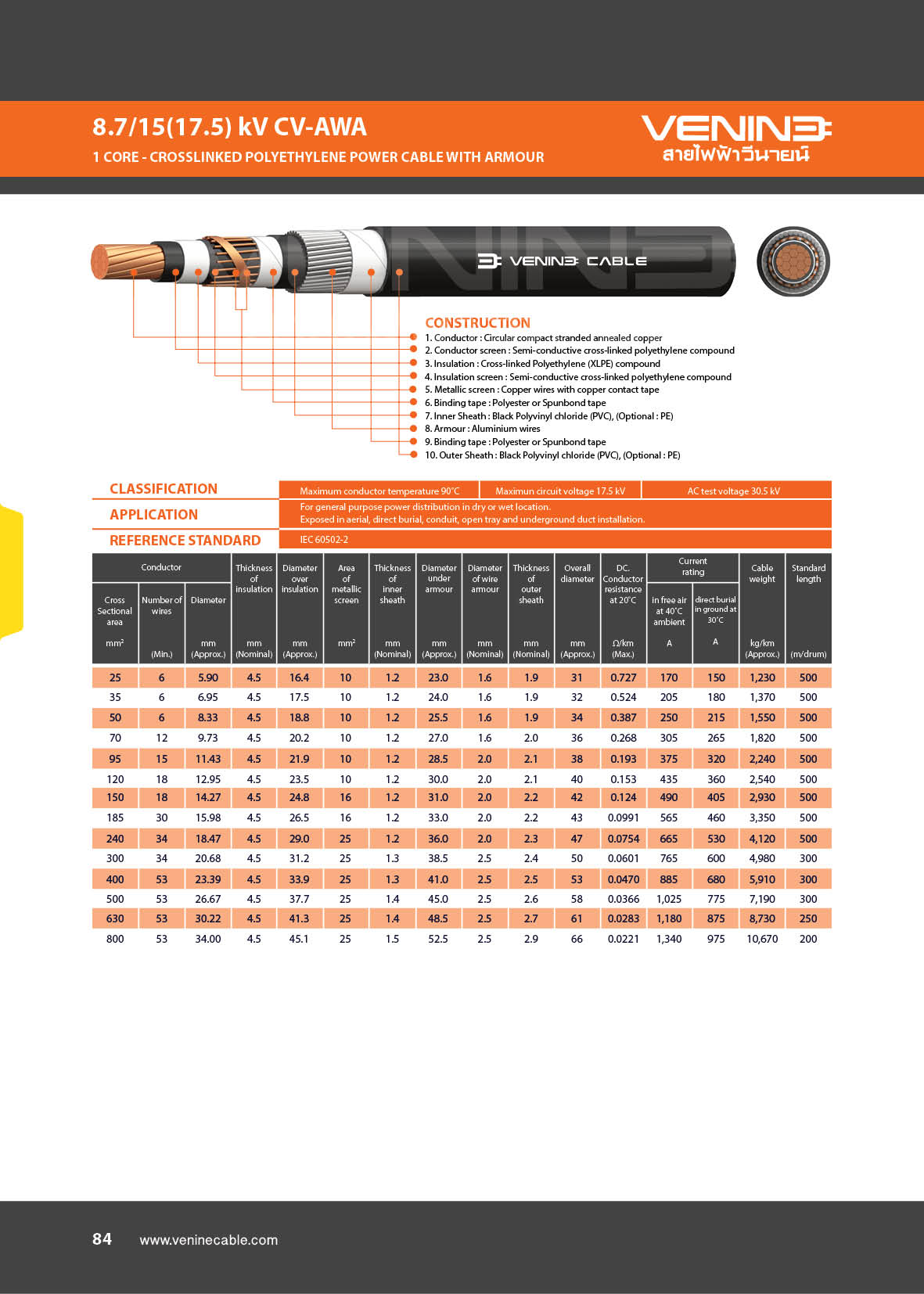

รายละเอียด

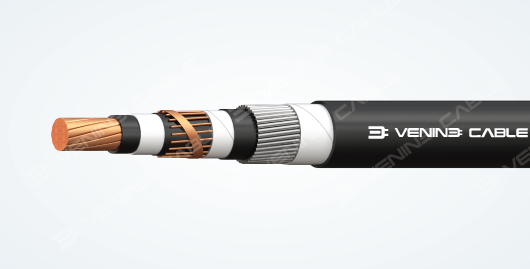

CONSTRUCTION

Conductor :  Circular compact stranded annealed copper
Conductor Screen :  Semi-conductive cross-linked polyethylene compound
Insulation :  Cross-linked polyethylene (XLPE) compound
Insulation Screen :  Semi-conductive cross-linked polyethylene compound
Metallic Screen :  Copper wires with copper contact tape
Binding tape :  Polyester or Spunbond tape
Inner Sheath :  Black Polyvinyle Chloride (PVC), (Optional : PE)
Armour :  Aluminum Wires
Binding tape :  Polyester or Spunbond tape
Outer Sheath :  Black Polyvinyle Chloride (PVC), (Optional : PE)

Maximum conductor temperature : 90˚C
Maximum circuit voltage : 17.5 kV
AC test voltage : 30.5 kV

APPLICATION

For general purpose power distribution in dry or wet location.
Exposed in aerial, direct burial, conduit, open tray and underground duct installation.

REFERENCE STANDARD

IEC 60502-2
